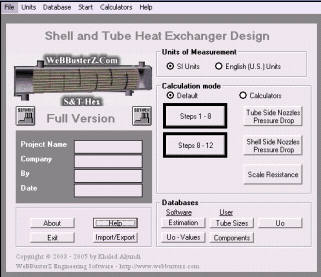

| Shell and Tube Heat Exchanger Design
1.4.1 |
|
|
|
|
Step by step shell and tube heat exchanger design and analysis software |
|
| Step by step shell and tube heat exchanger design and analysis software
Below is a list of some functions:
1-Step by step calculation
2-Estimate the Physical properties of more than 1450 components; the database has the ability to estimate Thermal Conductivity, Density, Heat Capacity and Viscosity. The database also included critical properties, boiling and melting points.
3-Estimate mixture properties. (ALL ESTIMATION METHODS CURRENTLY SUPPORT LIQUIDS ONLY)
4-Integrated customised database functions to allow user to add/delete compnents.
5-Ability to import properties to Shell/Tube sides form Microsoft Excel
6-Export Results summary to Microsoft Excel
7-Ability to calculate unknown shell or tube side temperatures by iteration method (solving by trial and error)
8-Also can select from different correlations to calculate shell or tube heat transfer coefficient
9-Calculate the scale resistance (dirt factor)
10-Shell/Tube side Reynolds and Nusselt numbers
11-Buffle spacing
12-Recommended minimun shell thickness, minimum recommended number and diameter of rods.
13-Calculate Shell/Nozzle/Channel/Head/Tubesheet Thickness.
14-Support S.I Units and English (U.S) Units of mesurement.
15-Duty Calculation
16-Overall heat transfer coefficient
17-Shell/Tube velocities.
18-Save/Load results.
19-Generate/Print a summary of results |
|
|
|
