Professional PCB Design System with easy-to-learn user interface

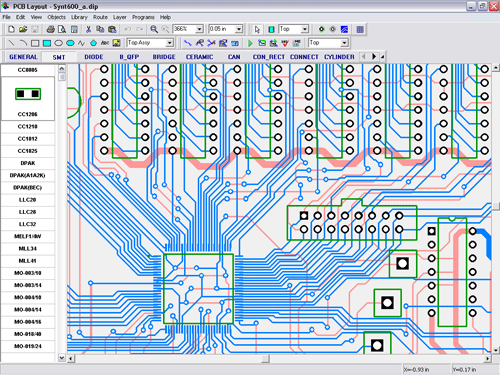

DipTrace is an advanced PCB design software application that comes with PCB Layout module, powerful auto-router, Schematic Capture and Component/Pattern editors to design your own component libraries. Besides being very simple to learn, which is quite an accomplishment for an engineering software application, the software has a very intuitive user interface and many innovative features. For instance, a schematic can be converted to a PCB with one mouse click. The board designer can instantly renew the PCB from an updated version of schematic and keep existing placement, routed traces, board outline, mounting holes and other work. DipTrace has a high quality automatic router, superior to many routers included in other PCB layout packages. It can route a single layer (bottom side) and multilayer circuit boards, and there is an option to autoroute a single layer board with jumper wires, if required. Smart manual routing tools allow users to finalize the design and to get the results they want in a blink of an eye. Accurate shape-based copper pour system with different possible fill types and thermals can be placed to plane layer and manufacturing costs can be reduced by minimizing the amount of etching solution. Another important features are Design Rule Check (DRC) and Net Conectivity Check - the functions that check the clearance between design objects, minimum size of tracks and drills, which ensures board accuracy, and connectivity of all nets not depending on how they are connected (with traces, thermals or shapes). A feature comparing a PCB to a schematic helps detect possible design mistakes and correct them before prototyping. Output formats are DXF, Gerber, N/C Drill and G-code. DipTrace allows you import DXF files in PCB Layout and Pattern Editor. Standard libraries contain 50.000+ components.
