Professional schematic editor for electronics design.

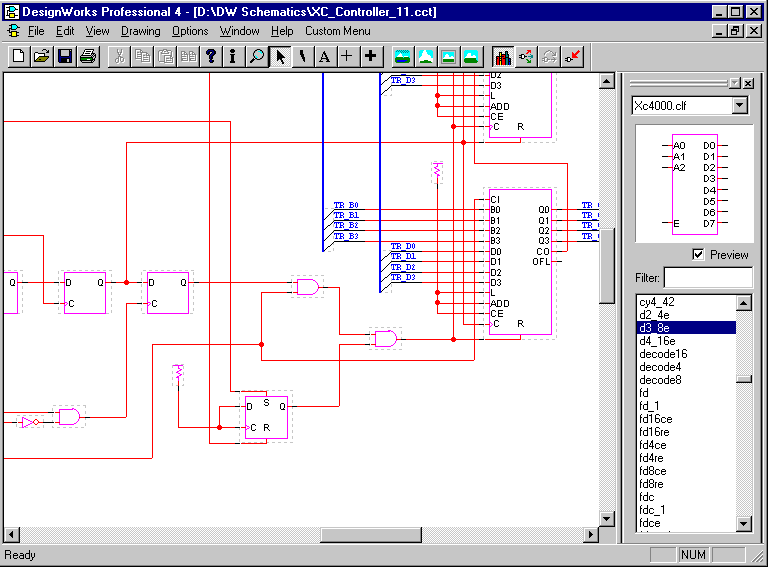

Unique in the industry, DesignWorks Professional works the way you do. With its intuitive graphical interface you ll be completing projects, not reading manuals. Let DesignWorks form the core of your engineering environment! DesignWorks Professional 4 offers you the best user interface, bar none, for schematic capture. The program is designed to minimize the number of mouse clicks and key strokes needed to complete a task. Most common operations, like placing a part or drawing a signal line, require no menu selections and no command typing. The powerful scripting system provides seamless integration with all your engineering tools. DesignWorks Professional 4 doesn t just provide an environment for a single goal. It allows you to recapture your investment dollars by being flexible enough to handle all your design goals, be the goal a PCB design, Spice analysis, or simulation. You are not locked in to one PCB or simulation vendor. This latest update includes the following enhancements: * A new Symbol Gallery panel in the symbol editor provides a place to store frequently used bits of graphics, special pin types or groups of elements for easy use in future symbols. * Popup menus are now provided on all objects to give direct access to commonly-used commands. * An integrated Properties command allows information to be displayed and changed for all object types. * Rotate/flip commands for all graphic objects. * You can now automatically display pin names on the symbol.
